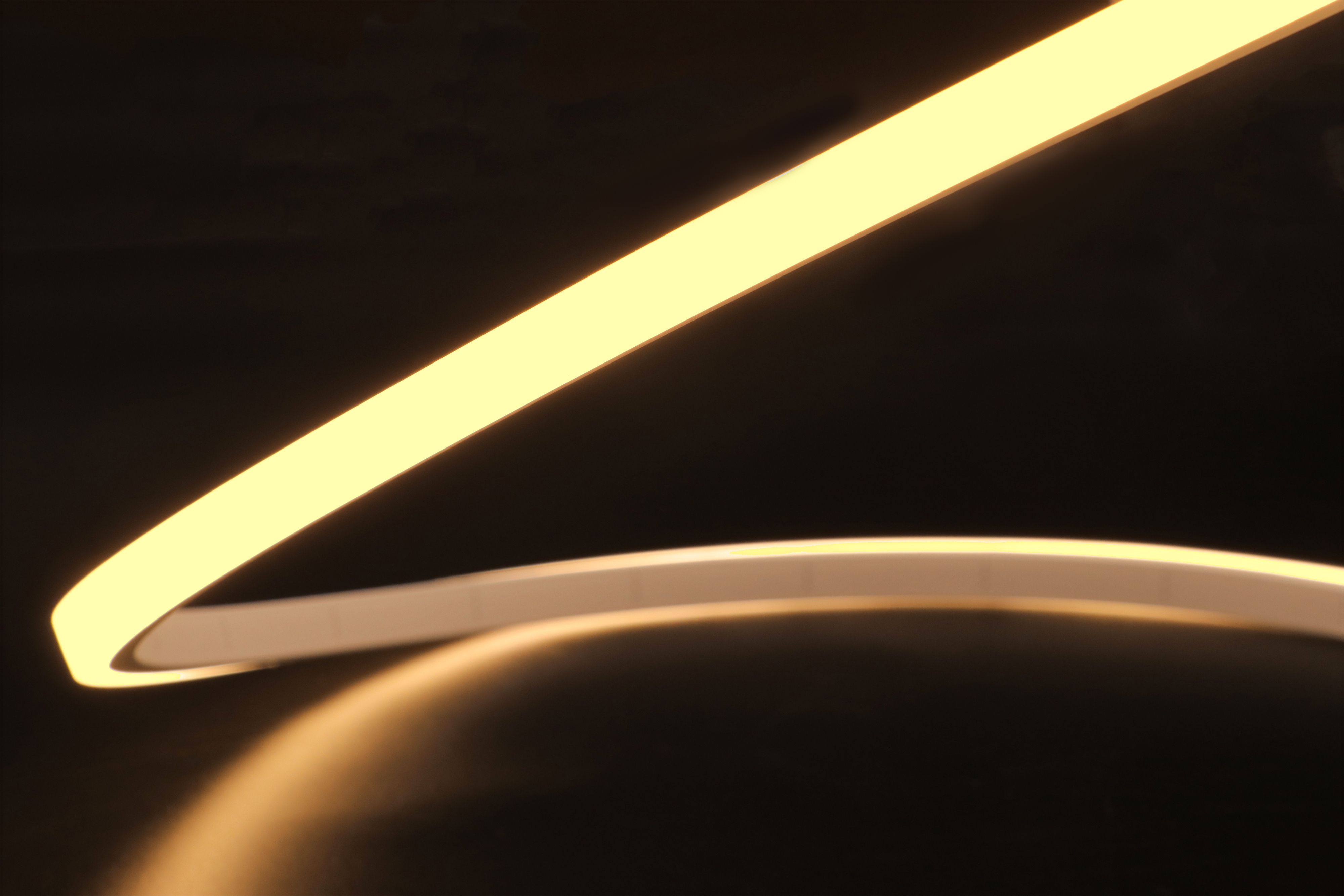

LINIO NEON 1010X TV TW (IP67)

200 lumen outputs·Tunable white


▪  3-sided illumination design

▪  Field cuttable & joinable

▪  Low voltage DC24V

▪  200 lumen outputs

▪  IP67 rated, ideal for indoor and outdoor uses

▪  5 years warranty


Inquiry
Download
Spec Sheet - LINIO NEON 1010X TV TW (Rev.5-Apr-25)
IES - LINIO NEON 1010X TV TW
Specify your products
Product Code:
LN1010XTV
-
W7
-
24
-
2753
-
354
-
-
-
-
-
-
Copy
Reset
1. Series
LN1010XTV
2. Environment
W7-Wet (IP67)
3. Voltage
24-DC24V
4. Temp./Color
2753-2700K+5300K
5. Power
354-3.54W
6. End Cap
IJ-Injected end cap (IP67)
IJC-Clear injected end cap (IP67)
SEC-Silicone end cap (IP67)
7. Left Feed Entry (A)
F-Front
B-Bottom
S-Side
C-Closed
8. Left Feed Entry (B)
OW-Open wire 3.28'
MC-Male connector with 0.98' cable
FC-Female connector with 0.98' cable
NA-Only for Closed Feed Entry
9. Right Feed Entry (A)
F-Front
B-Bottom
S-Side
C-Closed
10. Right Feed Entry (B)
OW-Open wire 3.28'
MC-Male connector with 0.98' cable
FC-Female connector with 0.98' cable
NA-Only for Closed Feed Entry
11. Length (ft)
* Customizable—Consult Factory
Technical specifications

Series: LN1010XTV


Temp./Color3.54W/ft
2700K125
5300K133
2700K+5300K267


Compatible drivers
KVD Series (0-10V Dimming)
KVD Series (0-10V Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Dimming options: 0-10V/1-10V/Potentiometer/10V PWM

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Built-in active PFC

• Protection: short circuit/over load/over heat

• 0-100% dimmable with dimmer
KVG Series (Triac/0-10V Dimming)
KVG Series (Triac/0-10V Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• 5 in 1 dimmable: Triac/0-10V/1-10V/Potentiometer/10V PWM

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat
KVF Series (Phase cut/Triac Dimming)
KVF Series (Phase cut/Triac Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Dimming options: Triac/Phase/ELV/MLV

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Load: 10-100%

• Protection: short circuit/over load/over heat

• Flicker-free
KV Series (Non Dimming)
KV Series (Non Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Non-dimmable

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat
Compatible accessories
Silicone Front End Cap
Silicone Front End Cap

Glue installation
Silicone Side End Cap
Silicone Side End Cap

Glue installation
Silicone Bottom End Cap
Silicone Bottom End Cap

Glue installation
Silicone Closed End Cap
Silicone Closed End Cap

Glue installation
