LINIO NEON 1617 TV RGBW (IP67)

200 lumen outputs·RGBW

▪ Max run length up to 29.5ft (9m) from single power feed

▪ Field cuttable & joinable

▪ Low voltage DC24V

▪ 200 lumen outputs

▪ IP67 rated, ideal for indoor and outdoor uses

▪ 5 years warranty

Inquiry

Download

Spec Sheet - LINIO NEON 1617 TV RGBW (Rev.22-Apr-25)

IES - LINIO NEON 1617 TV RGBW

Install Manual - LINIO NEON 1617 TV SERIES (Rev.2024-10-15) - US

Specify your products

Product Code:

LN1617TV

518

Copy

Reset

1. Series

LN1617TV

2. Environment

W7-Wet (IP67)

3. Voltage

24-DC24V

4. Temp./Color

RGBW27-RGBW (W=2700K)

RGBW30-RGBW (W=3000K)

RGBW35-RGBW (W=3500K)

RGBW40-RGBW (W=4000K)

5. Power

518-5.18W

6. End Cap

IJ-Injected end cap (IP67)

IJC-Clear injected end cap (IP67)

SEC-Silicone end cap (IP67)

MEC1-Mechanical end cap with screws (IP67)

7. Left Feed Entry (A)

F-Front

B-Bottom

S-Side

C-Closed

J-Jumper

8. Left Feed Entry (B)

OW-Open wire 3.28'

MC-Male connector with 0.98' cable

FC-Female connector with 0.98' cable

NA-Only for Closed Feed Entry

9. Right Feed Entry (A)

F-Front

B-Bottom

S-Side

C-Closed

J-Jumper

10. Right Feed Entry (B)

OW-Open wire 3.28'

MC-Male connector with 0.98' cable

FC-Female connector with 0.98' cable

NA-Only for Closed Feed Entry

11. Length (ft)

* Customizable—Consult Factory

Technical specifications

Series: LN1617TV

Temp./Color	5.18W/ft
R	26
G	73
B	17
W27	80
W30	87
W35	83
W40	83
RGBW27	191
RGBW30	197
RGBW35	194
RGBW40	194

Compatible power supplies

KVX Series (DMX512 Dimming)

96W/150W/200W/300W, UL-listed, 24V

• Dimming options: DMX512

• Constant Voltage Driver

• Input Voltage: 100-277VAC

• Slightly adjustable output voltage

• Built-in active PFC

• RDM (Remote Device Management)

• Protection: short circuit/over load/over heat

• Dry/damp/wet locations

• Flicker-free

• 0-100% dimmable

• Read and write DMX512 address or fine-tune output voltage with mobile ProNFC app or special NFC device

KV Series (Non Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V

• Non-dimmable

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat

Compatible DMX decoders and control

Ltech DMX Decoder (RGBW)

RGBW, UL-recognized

Nicolaudie Stick CW4

1024 channels, WIFI, APP, time clock

Compatible accessories

Silicone Front End Cap

Glue installation

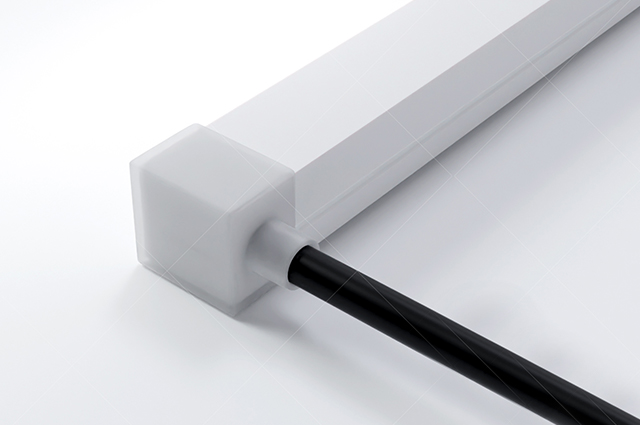

Silicone Side End Cap

Glue installation

Silicone Bottom End Cap

Glue installation

Silicone Closed End Cap

Glue installation

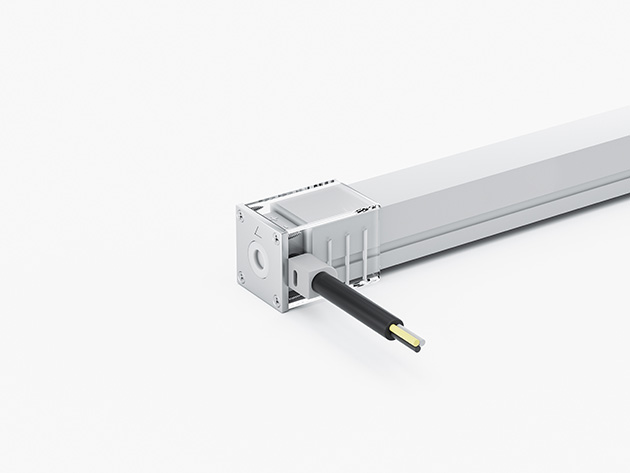

Mechanical Right Side End Cap

DIY, with screws

Mechanical Bottom End Cap

DIY, with screws

Mechanical Closed End Cap

DIY, with screws

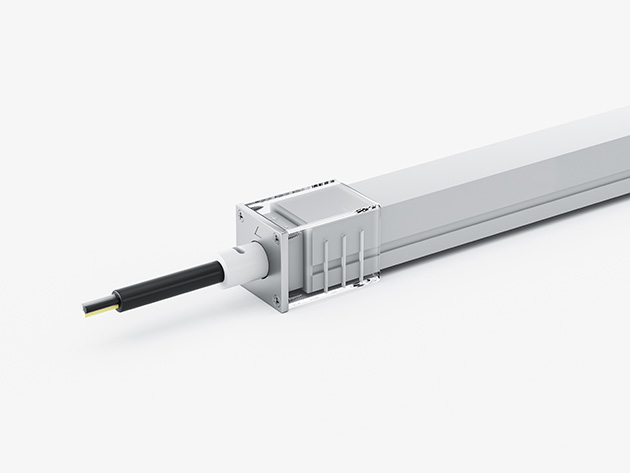

Mechanical Front End Cap

DIY, with screws

Mechanical Left Side End Cap

DIY, with screws
