LINIO NEON 1617 TV TW (IP67)

200 lumen outputs·Tunable white


▪  Max run length up to 49.2ft (15m) from single power feed

▪  Field cuttable & joinable

▪  Low voltage DC24V

▪  200 lumen outputs

▪  IP67 rated, ideal for indoor and outdoor uses

▪  5 years warranty


Inquiry
Download
Spec Sheet - LINIO NEON 1617 TV TW (Rev.4-Apr-25)
IES - LINIO NEON 1617 TV TW
Install Manual - LINIO NEON 1617 TV SERIES (Rev.2024-10-15) - US
Specify your products
Product Code:
LN1617TV
-
W7
-
24
-
2753
-
396
-
-
-
-
-
-
Copy
Reset
1. Series
LN1617TV
2. Environment
W7-Wet (IP67)
3. Voltage
24-DC24V
4. Temp./Color
2753-2700K+5300K
5. Power
396-3.96W
6. End Cap
IJ-Injected end cap (IP67)
IJC-Clear injected end cap (IP67)
SEC-Silicone end cap (IP67)
MEC1-Mechanical end cap with screws (IP67)
7. Left Feed Entry (A)
F-Front
B-Bottom
S-Side
C-Closed
J-Jumper
8. Left Feed Entry (B)
OW-Open wire 3.28'
MC-Male connector with 0.98' cable
FC-Female connector with 0.98' cable
NA-Only for Closed Feed Entry
9. Right Feed Entry (A)
F-Front
B-Bottom
S-Side
C-Closed
J-Jumper
10. Right Feed Entry (B)
OW-Open wire 3.28'
MC-Male connector with 0.98' cable
FC-Female connector with 0.98' cable
NA-Only for Closed Feed Entry
11. Length (ft)
* Customizable—Consult Factory
Technical specifications

Series: LN1617TV


Temp./Color

3.96W/ft

2700K

123

5300K

124

2700K+5300K

247



Compatible drivers
KVD Series (0-10V Dimming)
KVD Series (0-10V Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Dimming options: 0-10V/1-10V/Potentiometer/10V PWM

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Built-in active PFC

• Protection: short circuit/over load/over heat

• 0-100% dimmable with dimmer
KVG Series (Triac/0-10V Dimming)
KVG Series (Triac/0-10V Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• 5 in 1 dimmable: Triac/0-10V/1-10V/Potentiometer/10V PWM

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat
KVF Series (Phase cut/Triac Dimming)
KVF Series (Phase cut/Triac Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Dimming options: Triac/Phase/ELV/MLV

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Load: 10-100%

• Protection: short circuit/over load/over heat

• Flicker-free
KV Series (Non Dimming)
KV Series (Non Dimming)

30W/60W/96W/150W/200W/300W, UL-listed, 24V


• Non-dimmable

• UL-listed

• Constant Voltage Driver

• Universal Input: 100-277VAC

• Protection: short circuit/over load/over heat
Compatible DMX decoders and controllers
Silicone Front End Cap
Silicone Front End Cap

Glue installation
Silicone Side End Cap
Silicone Side End Cap

Glue installation

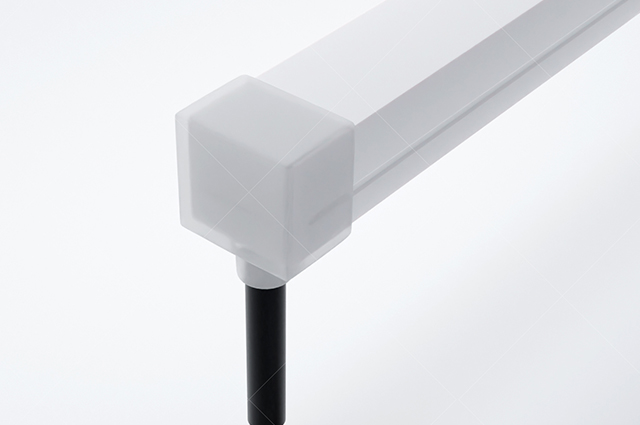

Silicone Bottom End Cap
Silicone Bottom End Cap

Glue installation

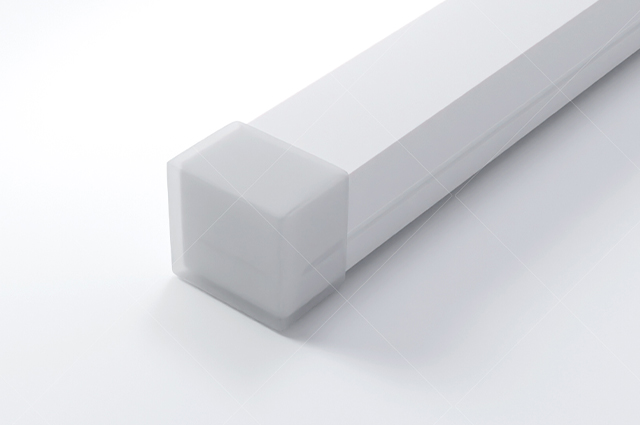

Silicone Closed End Cap
Silicone Closed End Cap

Glue installation
Mechanical Right Side End Cap
Mechanical Right Side End Cap

DIY, with screws
Mechanical Bottom End Cap
Mechanical Bottom End Cap

DIY, with screws
Mechanical Closed End Cap
Mechanical Closed End Cap

DIY, with screws
Mechanical Front End Cap
Mechanical Front End Cap

DIY, with screws
Mechanical Left Side End Cap
Mechanical Left Side End Cap

DIY, with screws
Compatible accessories
Silicone Front End Cap
Silicone Front End Cap

Glue installation
Silicone Side End Cap
Silicone Side End Cap

Glue installation
Silicone Bottom End Cap
Silicone Bottom End Cap

Glue installation
Silicone Closed End Cap
Silicone Closed End Cap

Glue installation
Mechanical Right Side End Cap
Mechanical Right Side End Cap

DIY, with screws
Mechanical Bottom End Cap
Mechanical Bottom End Cap

DIY, with screws
Mechanical Closed End Cap
Mechanical Closed End Cap

DIY, with screws
Mechanical Front End Cap
Mechanical Front End Cap

DIY, with screws
Mechanical Left Side End Cap
Mechanical Left Side End Cap

DIY, with screws
